1X4 YGNL RJ45 PCB Connector / 100base - Tx 4 Port Ethernet Jack TM53B814SXX1B

Brand Name : TM

Model Number : TM58D811EX115

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 500K/year

Delivery Time : 15 Days

Packaging Details : tray

Product Type : RJ45 Modular Connector

Jack Type : RJ45

Number of Positions : 8

Terminals per Port : 8

LED Option : No

Shielded EMI Tabs : No

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Durrability : 750 CYCLES MIN

Minimal Order : 500pcs

Package : tray

Contact Now

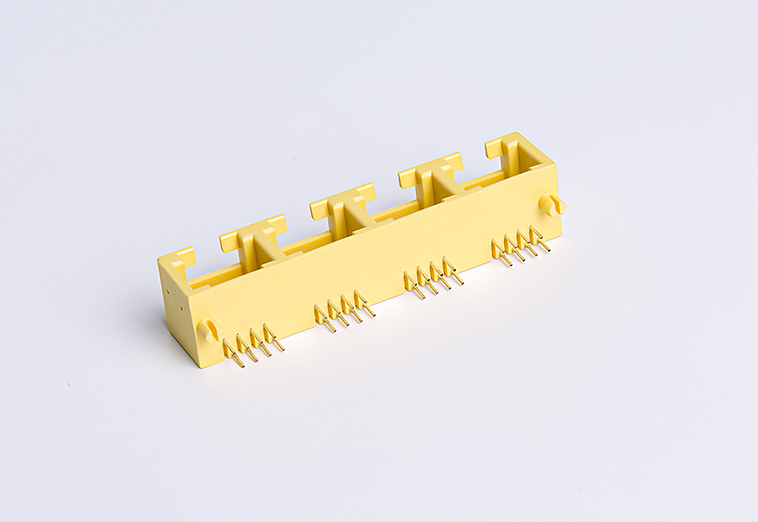

1X4 YGNL 4 Port ethernet jack / 100base-tx rj45 connector pcb mount Without Shield TM53B814SXX1B

Materials:

Housing : PBT,yellow,UL94V-0 ( RoHS )

Contact Finish: OD=0.46mm GOLD PLATING FU" OVER NICKEL( RoHS )

Shielding Shell: No shield.

All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ45 Jack

1 x 4 Port / four Ports

Connector Length: 12.00 mm

Connector Width: 55.88 mm

Connector Height: 11.5 mm

Termimal Solder Pin Length: 2.6 mm

8P8C ( 8 positions 8 contacts )

90°Orientation

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required

RJ45 Without Transformer (TM53B814SXX1B) Attributes:

Model:	TM53B814SXX1B
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	1pcs
Manner of packing :	Tray
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ45 Female Connector (TM53B814SXX1B) Mechnical Drawing:

1X4 YGNL RJ45 PCB Connector / 100base - Tx 4 Port Ethernet Jack TM53B814SXX1B
