300V DIN Male Cable 4PIN To 2PIN For Medical Equipment

Product Categories

Dongguan Tianmu Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TM

Model Number : TMCABLE020035

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 100pcs

Price : Supportive

Supply Ability : 500K/year

Delivery Time : 20 Days

Packaging Details : 50pcs/tray

Product Type : Motor Cable Power Cord

Jack Type : Din Connector Male

LED Option : No

Shielded EMI Tabs : No

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Durrability : 750 CYCLES MIN

Contact Now

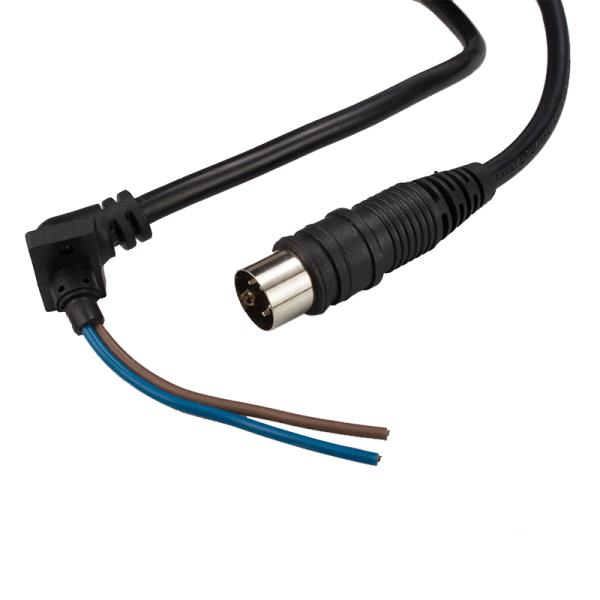

300/300V Din Connector Male 4PIN To 2PIN Cable-Tail Black Motor Cable Power Cord To Power the Medical Equipment

Motor Cable Power Cord (TMCABLE020035) Attributes:

300V DIN Male Cable 4PIN To 2PIN For Medical Equipment

Motor Cable Power Cord (TMCABLE020035) Materials:

Din Connector Molding: PVC BLACK

CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P

Motor Cable Power Cord (TMCABLE020035) Product Structure:
Din Connector 4PIN To 2PIN Cable-Tail

1 x 1 Port / Single Port / One Port
Din Connector 4PIN To 2PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:4P4C ( 4 positions 4 contacts )

180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required

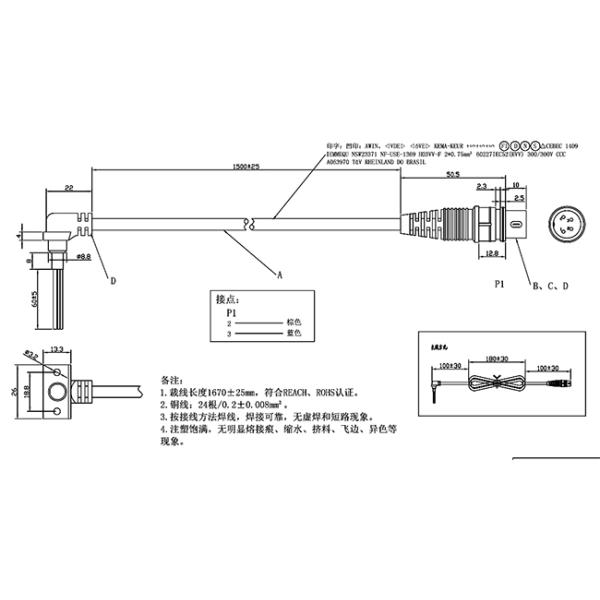

Motor Cable Power Cord (TMCABLE020035) Mechnical Drawing:

300V DIN Male Cable 4PIN To 2PIN For Medical Equipment

Product Tags:

300V DIN Male Cable
